Product Features

Technical Parameters

• Product Model

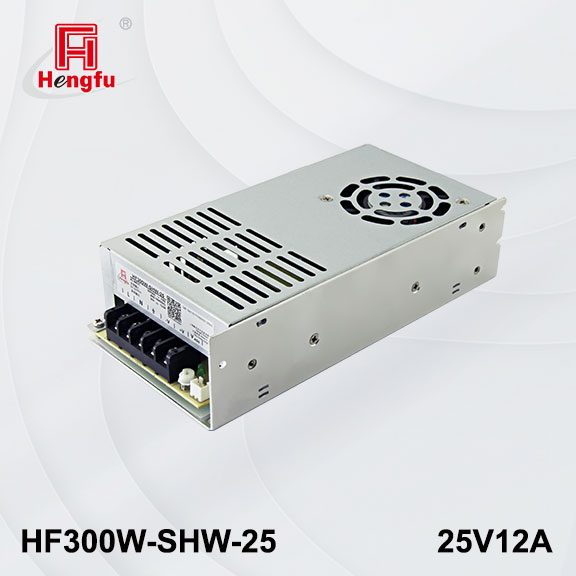

  HF300W-SHW-25
• Product Specifications
  12.0A
• Input voltage range
  640~1000VAC
• Input current
  0.6A/800VAC
• Inrush current
  ＜80A/800VAC, cold start
• Input over voltage protection
  shut down o/p voltage @Vin=1050~1150VAC, recover @Vin≤1000VAC (rated load)
• Input under voltage protection
  hiccup mode @Vin=550~630VAC, recover @Vin≥640VAC (rated load)
• Line regulation
  ≤±1%
• Load regulation
  ≤±2%
• Voltage adjust range
  ±10%
• Overload protection
  115%~150%, shut down o/p voltage and intermittent startup, auto recovery
• Over voltage protection
  115%~150%, shut down o/p voltage and intermittent startup, auto recovery
• Withstand voltage
  I/P-O/P: 4.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 1.0KVAC/1min
• Start time
  ≤9000ms/800VAC
• Rise time
  ＜80ms/800VAC
• Hold up time
  ≥20ms/800VAC
• Operating temperature
  -40℃~+70℃ (refer to the derating curve)
• Safety standards
  design refer to UL1741, EN62109-1
• Cooling method
  fan (startup @Ta≥55℃)
• Ripple & Noise
  200mV
• Efficiency (Typ.)
  85%

Related Products

•
  Product Model：

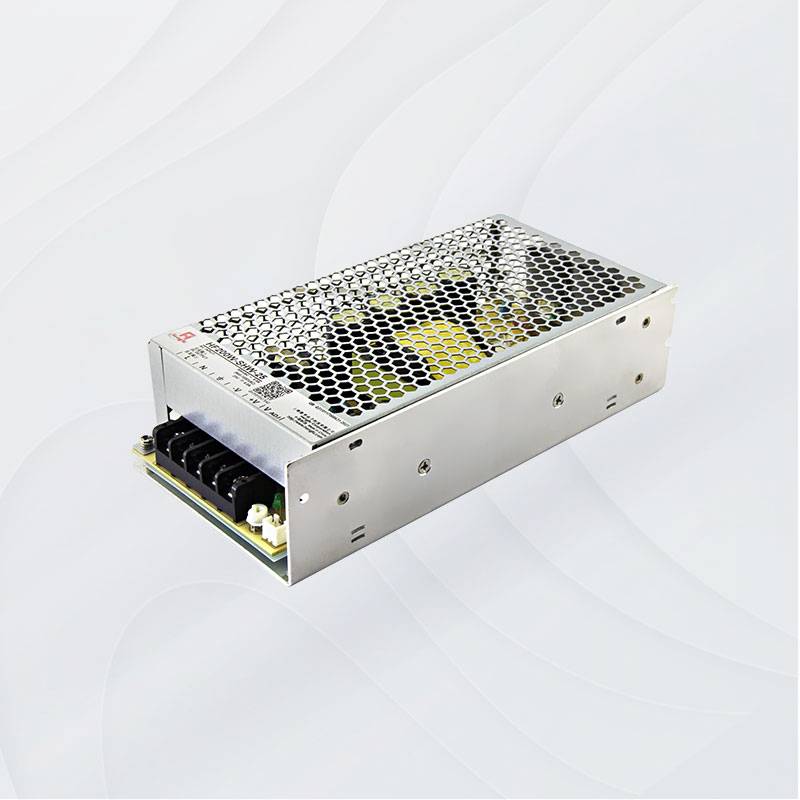

  HF200W-SHW-25
