Product Features

Technical Parameters

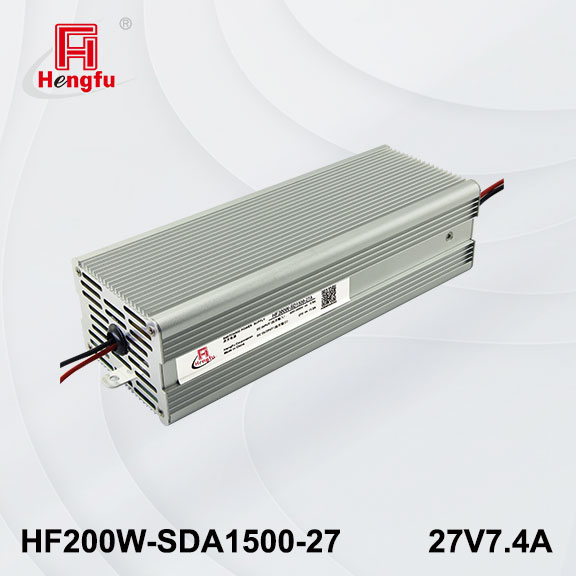

• Product Model
  HF200W-SDA1500-27
• Product Specifications
  7.4A
• Input voltage range
  400~1500VDC (max. 1600VDC without damage)
• Input current
  0.8A/400VDC
• Inrush current
  ＜80A/800VDC, cold start
• Input over voltage protection
  shut down o/p voltage @Vin=1600~1720VDC, recover @Vin≤1500VDC
• Line regulation
  ≤±0.5%
• Load regulation
  ≤±1%
• Voltage adjust range
  24~27V
• Overload protection
  105%~130%, delay shut off, re-power on to recover
• Over voltage protection
  115%~150%, shut off, re-power on to recover
• Withstand voltage
  I/P-O/P: 4.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 1.0KVAC/1min
• Start time
  ≤9000ms/800VDC
• Rise time
  ＜100ms/800VDC
• Operating temperature
  -40℃~+70℃ (refer to the derating curve)
• Safety standards
  design refer to UL1741, EN62109-1
• Cooling method
  convection (200W), fan (300W)
• Ripple & Noise
  500mV
• Efficiency (Typ.)
  86%
