EDR DIN Rail Series
Location： Home >Applications >Featured Products >EDR DIN Rail Series
EDR Rail Power Supplies

Standard metal DIN‑rail power supply features ultra‑slim compact form factor. Compatible with 35 mm DIN rail, it saves space and enables quick installation.


Wide input 85‑264 VAC / 120‑370 VDC, operating temperature: ‑30 °C ~ +70 °C. Multi‑protections for overload, overvoltage and short‑circuit, plus optimized heat dissipation ensure high stability and noise immunity. EMC and safety meet the latest international and Chinese standards.


Suitable for industrial automation, mechanical equipment, rail transit and smart buildings.


Available 30W‑480W with standard outputs 12V, 24V, 36V, 48V. Reach our sales for custom solutions upon special requests.

Related Products

Product Picture
Product Model
Product Parameters
Data Sheet
Sample Request
Buy Now
  •
    Product Modelo：

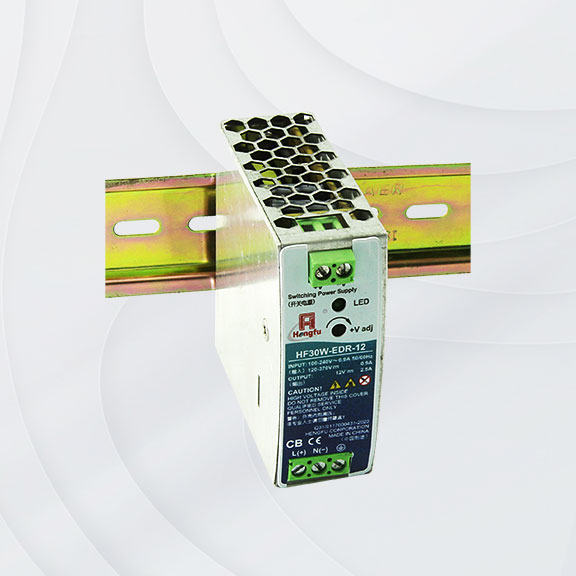

    HF30W-EDR-12
    Product Parameters
    Rated power
    (W)：30
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：12V
    Dimension
    (mm)：25*68*69.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：2.5A
    Rated power
    (W)：30
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：12V
    Output Current
    (A)：2.5A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：25*68*69.5
  •
    Product Modelo：

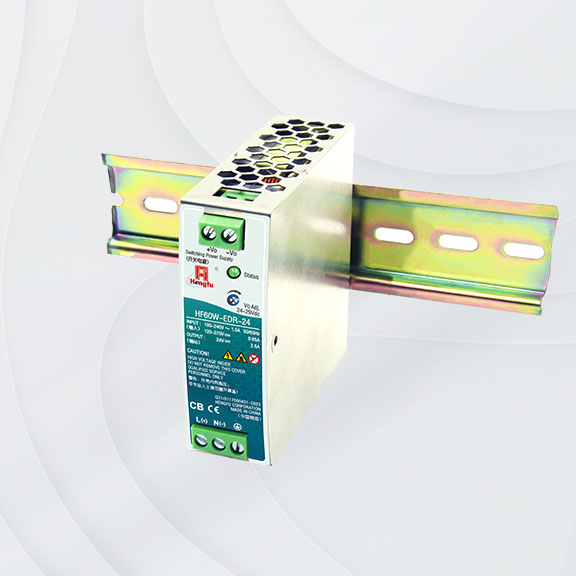

    HF60W-EDR-24
    Product Parameters
    Rated power
    (W)：60
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24V
    Dimension
    (mm)：25*75*78.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：2.5A
    Rated power
    (W)：60
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：24V
    Output Current
    (A)：2.5A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：25*75*78.5
  •
    Product Modelo：
    HF75W-EDR-12
    Product Parameters
    Rated power
    (W)：75.6
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：12V
    Dimension
    (mm)：32*110*83.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：6.3A
    Rated power
    (W)：75.6
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：12V
    Output Current
    (A)：6.3A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：32*110*83.5
  •
    Product Modelo：
    HF100W-EDR-24
    Product Parameters
    Rated power
    (W)：100.8
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24V
    Dimension
    (mm)：32*110*83.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：4.2A
    Rated power
    (W)：100.8
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：24V
    Output Current
    (A)：4.2A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：32*110*83.5
  •
    Product Modelo：
    HF120W-EDR-12
    Product Parameters
    Rated power
    (W)：120
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：12V
    Dimension
    (mm)：32*125*83.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：10.0A
    Rated power
    (W)：120
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：12V
    Output Current
    (A)：10.0A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：32*125*83.5
  •
    Product Modelo：
    HF150W-EDR-24
    Product Parameters
    Rated power
    (W)：156
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24V
    Dimension
    (mm)：32*125*83.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：6.5A
    Rated power
    (W)：156
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：24V
    Output Current
    (A)：6.5A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：32*125*83.5
  •
    Product Modelo：
    HF240W-EDR-12
    Product Parameters
    Rated power
    (W)：200.4
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：12V
    Dimension
    (mm)：41*124*110.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：16.7A
    Rated power
    (W)：200.4
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：12V
    Output Current
    (A)：16.7A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：41*124*110.5
  •
    Product Modelo：
    HF480W-SDR-24A
    Product Parameters
    Rated power
    (W)：480
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24V
    Dimension
    (mm)：48*125.2*127.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：20.0A
    Rated power
    (W)：480
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：24V
    Output Current
    (A)：20.0A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：48*125.2*127.5
For more products, please contact customer service or request customization.
