Photovoltaic power supply

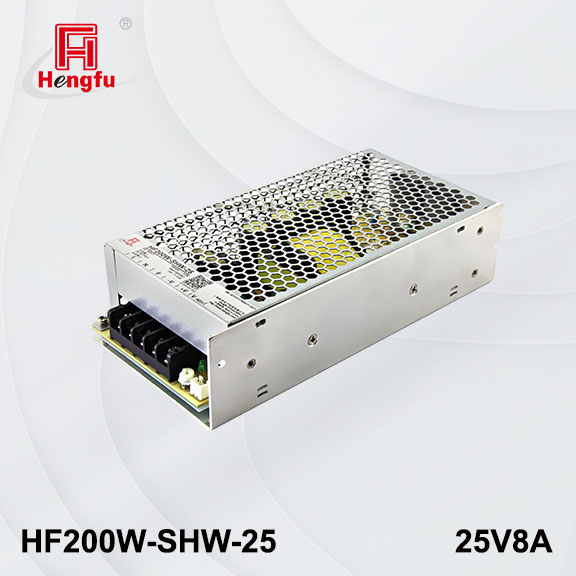

200W Single Output SHW Series (HF200W-SHW-25)

Product Model：HF200W-SHW-25

Rated power
(W)：200

Channel (s)：Single

Input Voltage
(VAC)：640~1000

Input Voltage
(VDC)：--

Output Voltage
(VDC)：25

Output Current
(A)：8.0A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：199*98*50

Product Features

Hengfu Photovoltaic-Dedicated Switching Power Supply is precisely designed for power conversion scenarios in photovoltaic systems, with deep adaptation to outdoor solar environment requirements.
Widely applied across multiple stages of photovoltaic power generation systems, compatible with various equipment including photovoltaic modules, inverters, energy storage batteries, and monitoring systems.

Suitable for photovoltaic systems Suitable for applications up to 5000m altitude High efficiency, high reliability, long service life 3-year limited warranty
Wide input voltage range Input overvoltage protection, undervoltage protection Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF200W-SHW-25
Product Specifications

8.0A
Input voltage range

640~1000VAC
Input current

0.5A/800VAC
Inrush current

＜80A/800VAC, cold start
Input over voltage protection

shut down o/p voltage @Vin=1050~1150VAC, recover @Vin≤1000VAC (rated load)
Input under voltage protection

hiccup mode @Vin=550~630VAC, recover @Vin≥640VAC (rated load)
Line regulation

≤±1%
Load regulation

≤±2%
Voltage adjust range

±10%
Overload protection

115%~150%, shut down o/p voltage and intermittent startup, auto recovery
Over voltage protection

115%~150%, shut down o/p voltage and intermittent startup, auto recovery
Withstand voltage

I/P-O/P: 4.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 1.0KVAC/1min
Start time

≤9000ms/800VAC
Rise time

＜80ms/800VAC
Hold up time

≥20ms/800VAC
Operating temperature

-40℃~+70℃ (refer to the derating curve)
Safety standards

design refer to UL1741, EN62109-1
Cooling method

convection
Ripple & Noise

200mV
Efficiency (Typ.)

85%

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：

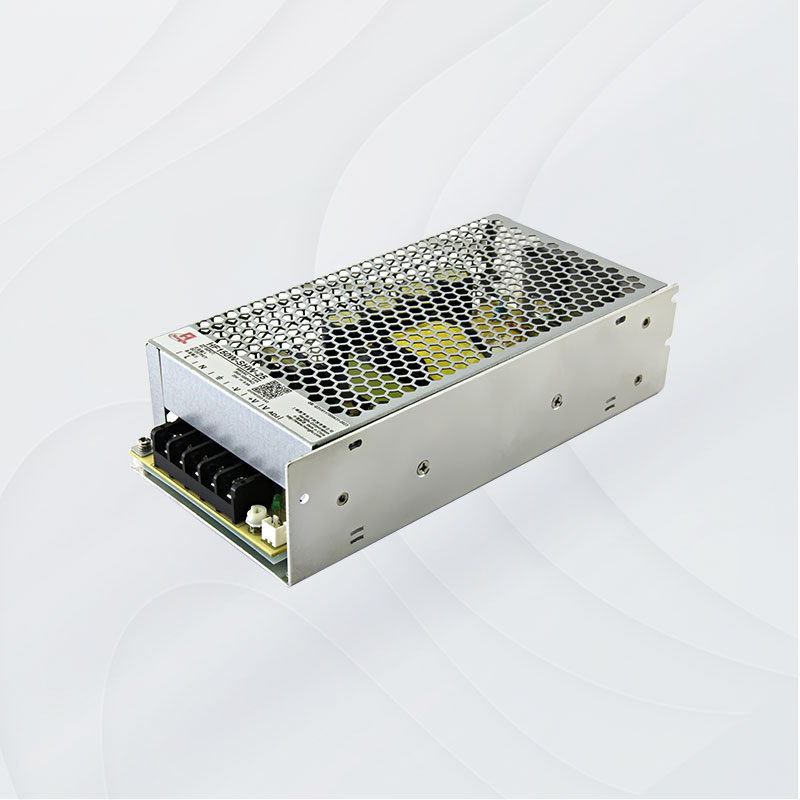

HF150W-SHW-25

Product Parameters

Rated power
(W)：162.5

Input Voltage
(VDC)：--

Op. Temp.
(℃)：-40~+70

Channel (s)：Single

Output Voltage
(VDC)：25

Dimension
(mm)：199*98*50

Input Voltage
(VAC)：640~1000

Output Current
(A)：6.5A

Rated power
(W)：162.5

Channel (s)：Single

Input Voltage
(VAC)：640~1000

Input Voltage
(VDC)：--

Output Voltage
(VDC)：25

Output Current
(A)：6.5A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：199*98*50
Product Model：

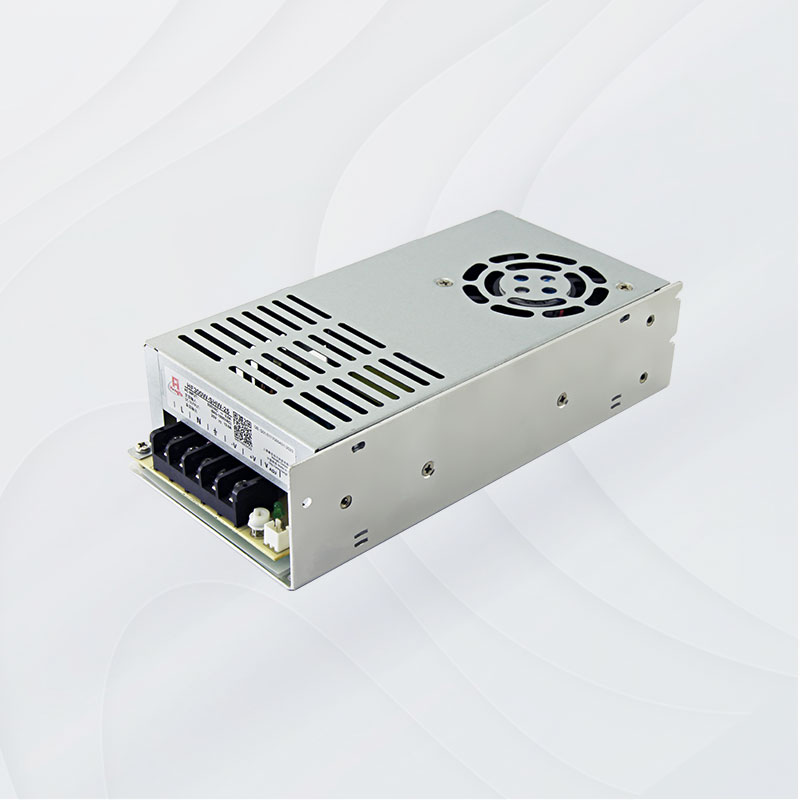

HF300W-SHW-25
