Product Features

Technical Parameters

• Product Model

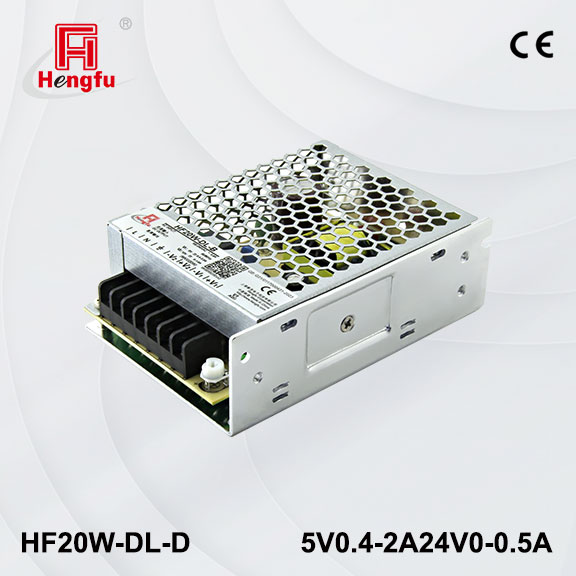

  HF20W-DL-D
• Product Specifications
  2.0A,0.5A
• Input voltage range
  85~264VAC (120~370VDC)
• Inrush current
  ＜30A/230VAC, cold start
• Input leakage current
  ＜0.5mA/240VAC
• Line regulation
  ≤±0.5%
• Voltage tolerance
  V1:≤±1%, V2≤±3% (with regulator); ≤±10% (w/o)
• Voltage adjust range
  V1:±5% of rated output voltage
• Overload protection
  105~150%, hiccup mode, auto recovery
• Over voltage protection
  115~150%, clamping by diode
• Withstand voltage
  I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
• Rise, hold up time
  50ms, 20ms@full load (typical)
• Operating temperature
  -30℃~+70℃ (refer to the derating curve)
• Safety standards
  meet UL62368-1, EN IEC62368-1, GB4943.1
• EMC standards
  meet EN55032, EN55035, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• Cooling method
  convection
• Ripple & Noise
  80mV, 150mV
• Efficiency (Typ.)
  74%
