Location: Home >Products >AC/DC Multi. Output >Multiple Output Series (Universal Input) >HF150W-LDK-D

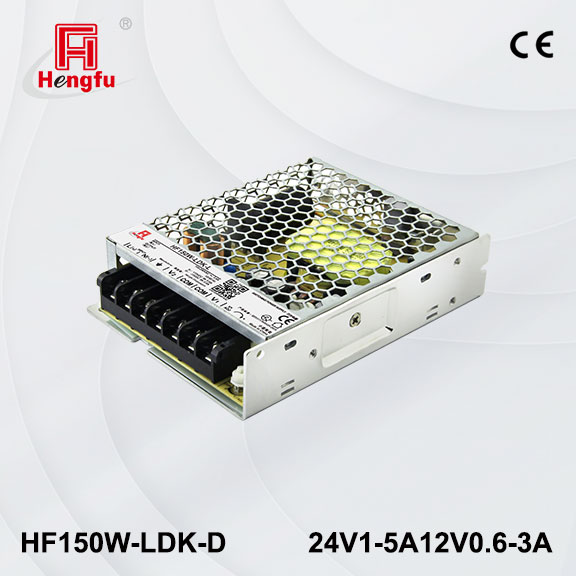

*Image for reference only. Subject to the physical product or technical specifications.
Multiple Output Series (Universal Input)
150W Dual Output LDK Series (HF150W-LDK-D)
Product Model：HF150W-LDK-D
Rated power
(W)：150
Channel (s)：Dual
Input Voltage
(VAC)：85~264
Input Voltage
(VDC)：120~370
Output Voltage
(VDC)：24V, 12V
Output Current
(A)：5.0A,3.0A
Op. Temp.
(℃)：-40~+70
Dimension
(mm)：129*97*30
Downloads： 3D drawing 丨 Drawing
Data Sheet
Sample Request
Product Inquiry
Buy Now

Product Features

Standard multi-output switching power supply with power range from 10W to 1000W. Supports worldwide wide-range AC input and provides various output configurations including dual isolated, dual non-isolated, triple non-isolated, and quadruple isolated outputs to meet different system power requirements.
We offer various output voltage combinations including 5V/12V, 5V/24V, 12V/24V, and ±15V, with free sample testing available. Professional custom development services are also supported to meet diverse non-standard application requirements.

Technical Parameters

  • Product Model
    HF150W-LDK-D
  • Product Specifications
    5.0A,3.0A
  • Rated Input Voltage
    100-240Vac (140-340Vdc)
  • Input Voltage Range
    85~264Vac (120~370Vdc)
  • Rated Input Frequency
    50/60Hz
  • Input Frequency Range
    47~63Hz
  • Input Current
    ＜3.2A/115Vac; ＜1.6A/230Vac
  • Inrush Current
    ＜65A/230Vac，冷启动 cold start
  • Input Leakage Current
    ＜0.75mA/240Vac
  • Voltage Adjust Range
    ±5%
  • Line Regulation
    ±0.5%, ±1.0%
  • Load Regulation
    ±0.5%, ±5%
  • Output Voltage Accuracy
    ±1%, ±8%
  • Ripple & Noise
    150mV, 150mV
  • Efficiency (Typ.)
    82%
