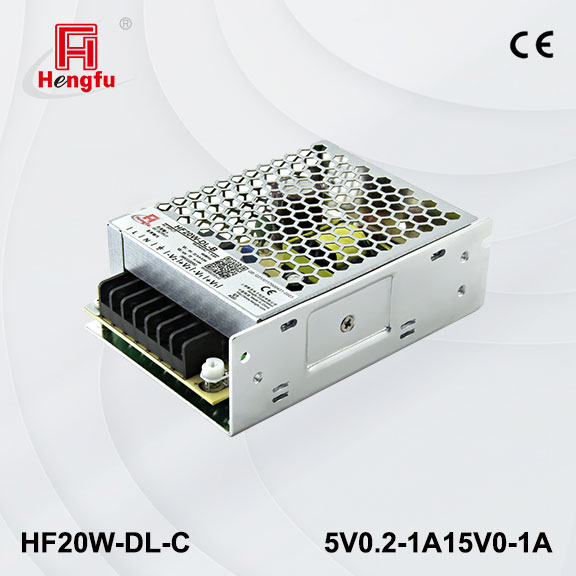

20W Dual Output DL Series (HF20W-DL-C)
Product Model：HF20W-DL-C
Rated power
(W)：20
Channel (s)：Dual
Input Voltage
(VAC)：85~264
Input Voltage
(VDC)：120~370
Output Voltage
(VDC)：5V, 15V
Output Current
(A)：1.0A,1.0A
Op. Temp.
(℃)：-30~+70
Dimension
(mm)：111*78*36
Data Sheet
Sample Request
Product Inquiry
Buy Now

Product Features

Standard multi-output switching power supply with power range from 10W to 1000W. Supports worldwide wide-range AC input and provides various output configurations including dual isolated, dual non-isolated, triple non-isolated, and quadruple isolated outputs to meet different system power requirements.
We offer various output voltage combinations including 5V/12V, 5V/24V, 12V/24V, and ±15V, with free sample testing available. Professional custom development services are also supported to meet diverse non-standard application requirements.

Technical Parameters

  • Product Model
    HF20W-DL-C
  • Product Specifications
    1.0A,1.0A
  • Input voltage range
    85~264VAC (120~370VDC)
  • Inrush current
    ＜30A/230VAC, cold start
  • Input leakage current
    ＜0.5mA/240VAC
  • Line regulation
    ≤±0.5%
  • Voltage tolerance
    V1:≤±1%, V2≤±3% (with regulator); ≤±10% (w/o)
  • Voltage adjust range
    V1:±5% of rated output voltage
  • Overload protection
    105~150%, hiccup mode, auto recovery
  • Over voltage protection
    115~150%, clamping by diode
  • Withstand voltage
    I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • Rise, hold up time
    50ms, 20ms@full load (typical)
  • Operating temperature
    -30℃~+70℃ (refer to the derating curve)
  • Safety standards
    meet UL62368-1, EN IEC62368-1, GB4943.1
  • EMC standards
    meet EN55032, EN55035, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
  • Cooling method
    convection
  • Ripple & Noise
    80mV, 120mV
  • Efficiency (Typ.)
    73%

Related Products

Product Picture
Product Model
Product Parameters
Data Sheet
Sample Request
Buy Now
  •
    Product Model：
    HF20W-DL-B
    Product Parameters
    Rated power
    (W)：20
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Dual
    Output Voltage
    (VDC)：5V, 12V
    Dimension
    (mm)：111*78*36
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：3.0A,1.0A
    Rated power
    (W)：20
    Channel (s)：Dual
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：5V, 12V
    Output Current
    (A)：3.0A,1.0A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：111*78*36
  •
    Product Model：
    HF20W-DL-D
    Product Parameters
    Rated power
    (W)：20
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Dual
    Output Voltage
    (VDC)：5V, 24V
    Dimension
    (mm)：111*78*36
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：2.0A,0.5A
    Rated power
    (W)：20
    Channel (s)：Dual
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：5V, 24V
    Output Current
    (A)：2.0A,0.5A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：111*78*36
  •
    Product Model：
    HF10W-DL-C
    Product Parameters
    Rated power
    (W)：10
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Dual
    Output Voltage
    (VDC)：5V, 15V
    Dimension
    (mm)：100*58*32
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：1.8A,0.5A
    Rated power
    (W)：10
    Channel (s)：Dual
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：5V, 15V
    Output Current
    (A)：1.8A,0.5A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：100*58*32
  •
    Product Model：
    HF40W-DL-C
    Product Parameters
    Rated power
    (W)：40
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Dual
    Output Voltage
    (VDC)：5V, 24V
    Dimension
    (mm)：129*98*39
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：2.0A,1.0A
    Rated power
    (W)：40
    Channel (s)：Dual
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：5V, 24V
    Output Current
    (A)：2.0A,1.0A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：129*98*39
  •
    Product Model：
    HF10W-TL-C
    Product Parameters
    Rated power
    (W)：10
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Triple
    Output Voltage
    (VDC)：5V, 12V, -5V
    Dimension
    (mm)：100*58*32
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：1.4A,0.15A,0.1A
    Rated power
    (W)：10
    Channel (s)：Triple
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：5V, 12V, -5V
    Output Current
    (A)：1.4A,0.15A,0.1A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：100*58*32
