Product Features

Technical Parameters

• Product Model

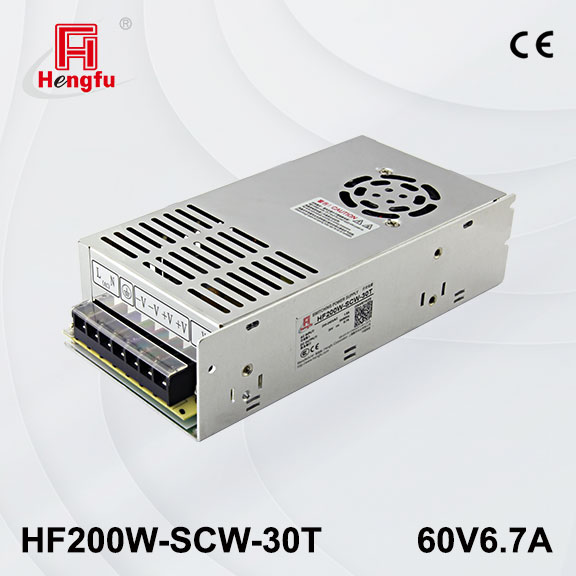

  HF200W-SCW-30T
• Product Specifications
  6.7A
• Input voltage range
  176~264VAC (240~370VDC)
• Input current
  1.8A/230VAC
• Input frequency
  47~63Hz
• Inrush current
  ＜45A/230VAC, cold start
• Input leakage current
  ＜0.75mA/240VAC
• Line regulation
  ≤±0.5%
• Voltage adjust range
  ±10%
• Overload protection
  105~150%, hiccup mode, auto recovery
• Over voltage protection
  32~35VDC, hiccup mode, auto recovery
• Withstand voltage
  I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
• Rise time
  ＜50ms/230VAC
• Hold up time
  ≥20ms/230VAC
• Operating temperature
  -20℃~+70℃(refer to the derating curve)
• Safety standards
  meet UL62368-1, EN IEC62368-1, GB4943.1
• EMC standards
  meet EN55032, EN55035, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• Cooling method
  fan
• Ripple & Noise
  200mV
• Efficiency (Typ.)
  85%

Related Products

•
  Product Model：

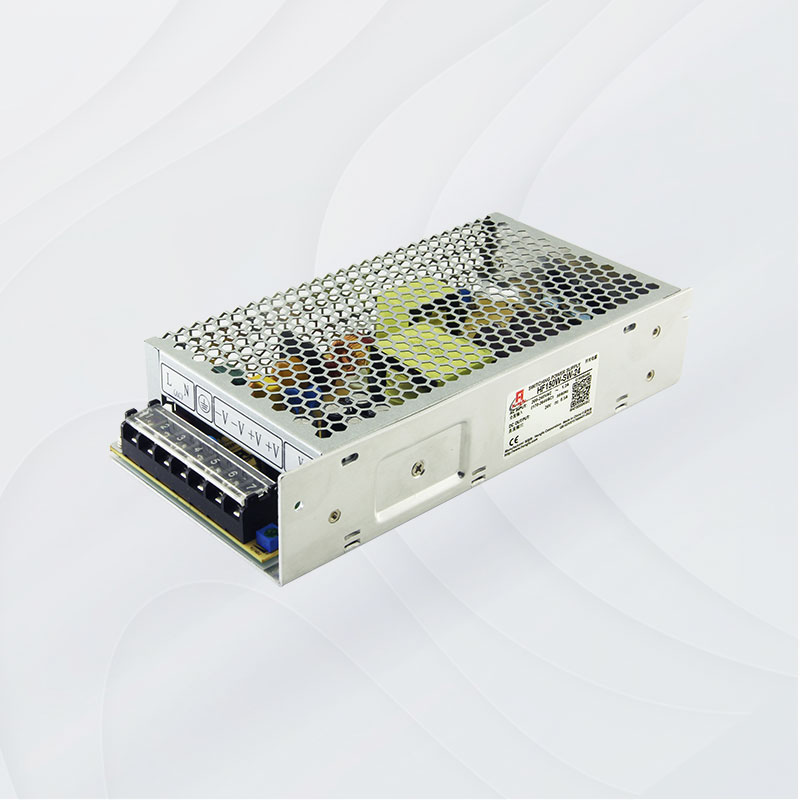

  HF150W-SW-24
