HF150W-SW-24_Industrial Switching Power Supply Manufacturer

*Image for reference only. Subject to the physical product or technical specifications.

Special Application Power Supply

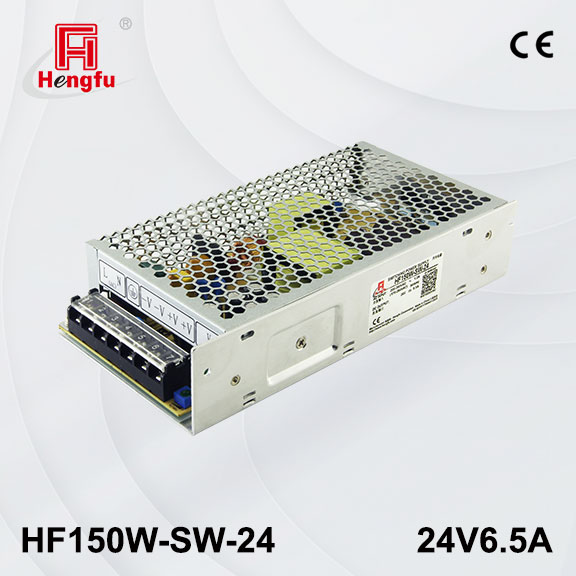

150W Single Output SW Series (HF150W-SW-24)

Product Model：HF150W-SW-24

Rated power
(W)：156

Channel (s)：Single

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：180~370

Output Voltage
(VDC)：24

Output Current
(A)：6.5A

Op. Temp.
(℃)：-20~+70

Dimension
(mm)：199*98*41.5

Product Features

Special Application Series switching power supplies feature precise adaptation, reliable application, and technological innovation. We break through the limitations of traditional standard power supplies by providing deeply customized power solutions, committed to meeting the power supply needs of various industries in non-standard scenarios.
We possess professional custom development capabilities, enabling comprehensive matching from three key dimensions: electrical parameters, mechanical structure, and environmental adaptability, tailoring power products that truly meet your application requirements.

Deep Custom Development Wide Operating Temperature Range Key Components from Renowned Domestic and International Brands
Precise Application Scenario Matching Full-Process Stringent Testing Suitable for Various Demanding Working Environments
Wide Input Voltage Range High Efficiency, High Reliability, Long Service Life

Technical Parameters

Product Model

HF150W-SW-24
Product Specifications

6.5A
Input voltage range

170~264VAC (209~370VDC)
Input current

1.2A/230VAC
Input frequency

47~63Hz
Inrush current

＜40A/230VAC, cold start
Input leakage current

＜0.5mA/240VAC
Line regulation

≤±0.5%
Voltage adjust range

±10%
Overload protection

150~220%, hiccup mode, delay protection, auto recovery
Over voltage protection

33~36VDC, hiccup mode, auto recovery
Withstand voltage

I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Rise time

＜50ms/230VAC
Hold up time

≥20ms/230VAC
Operating temperature

-20℃~+70℃(refer to the derating curve)
Safety standards

meet UL508, EN IEC62368-1, GB4943.1
EMC standards

meet EN55032, EN55035, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Cooling method

convection
Ripple & Noise

150mV
Efficiency (Typ.)

86%

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：

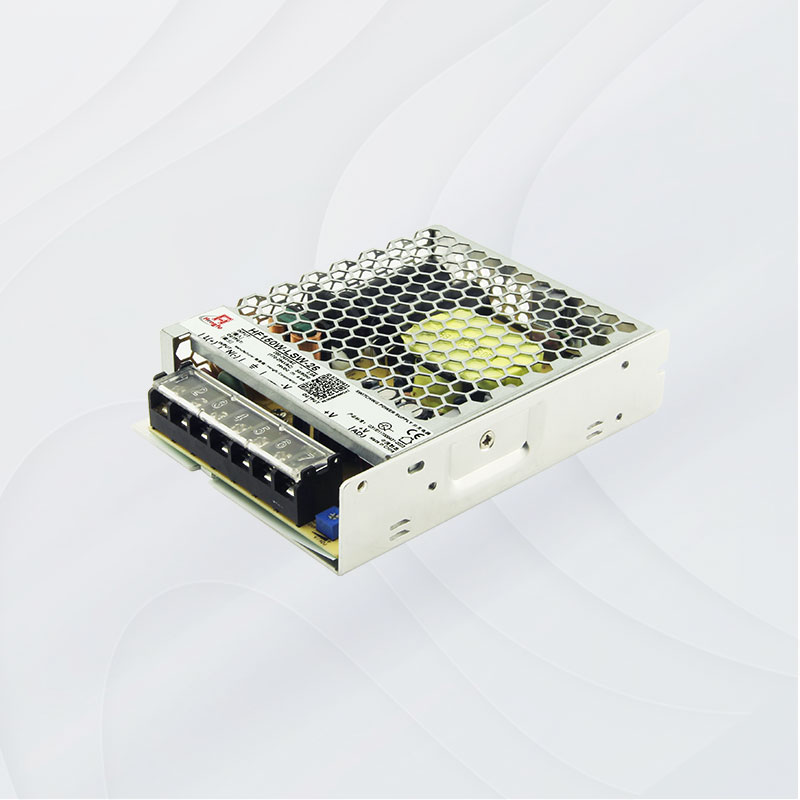

HF150W-LSW-26
