HF100W-DE-L_Industrial Switching Power Supply Manufacturer

*Image for reference only. Subject to the physical product or technical specifications.

Laser equipment power supply

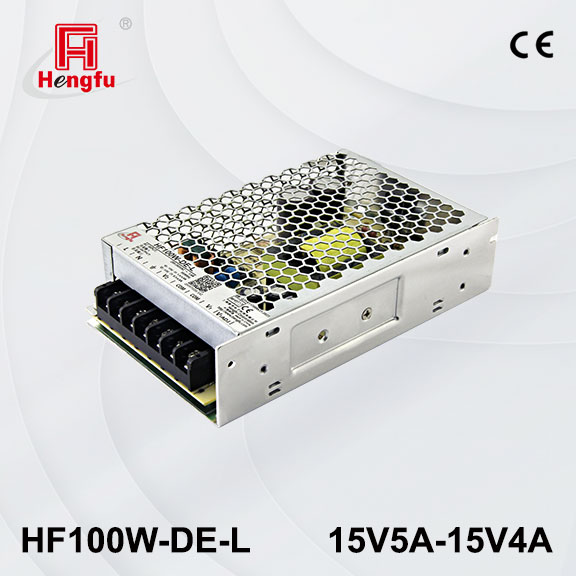

100W Dual Output DE Series (HF100W-DE-L)

Product Model：HF100W-DE-L

Rated power
(W)：100

Channel (s)：Dual

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：5.0A,4.0A

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：160*98*39

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF100W-DE-L
Product Specifications

5.0A,4.0A
Input voltage range

170~264VAC (240~370VDC)
Inrush current

47~63Hz
Voltage adjust range

＜45A/230VAC, cold start
Overload protection

＜0.75mA/240VAC
Over voltage protection

≤±0.5%
Over temp. protection

V1:±5% of rated output voltage
Withstand voltage

105~150%, hiccup mode, auto recovery
Rise time

115~150%, hiccup mode, auto recovery
Hold up time

I/P -O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Operating temperature

＜50ms/230VAC
Safety standards

≥20ms/230VAC
EMC standards

-30℃~+70℃ (refer to the derating curve)
Connection

meet UL62368-1, EN IEC62368-1, GB4943.1
Cooling method

convection
Ripple & Noise

150mV, 150mV
Efficiency (Typ.)

84%

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：
HF60W-DEL-L

Product Parameters

Rated power
(W)：60

Input Voltage
(VDC)：--

Op. Temp.
(℃)：-30°C~+70°C

Channel (s)：Dual

Output Voltage
(VDC)：15V, -15V

Dimension
(mm)：99*97*30

Input Voltage
(VAC)：85~264

Output Current
(A)：5.0A,5.0A

Rated power
(W)：60

Channel (s)：Dual

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：--

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：5.0A,5.0A

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：99*97*30
Product Model：

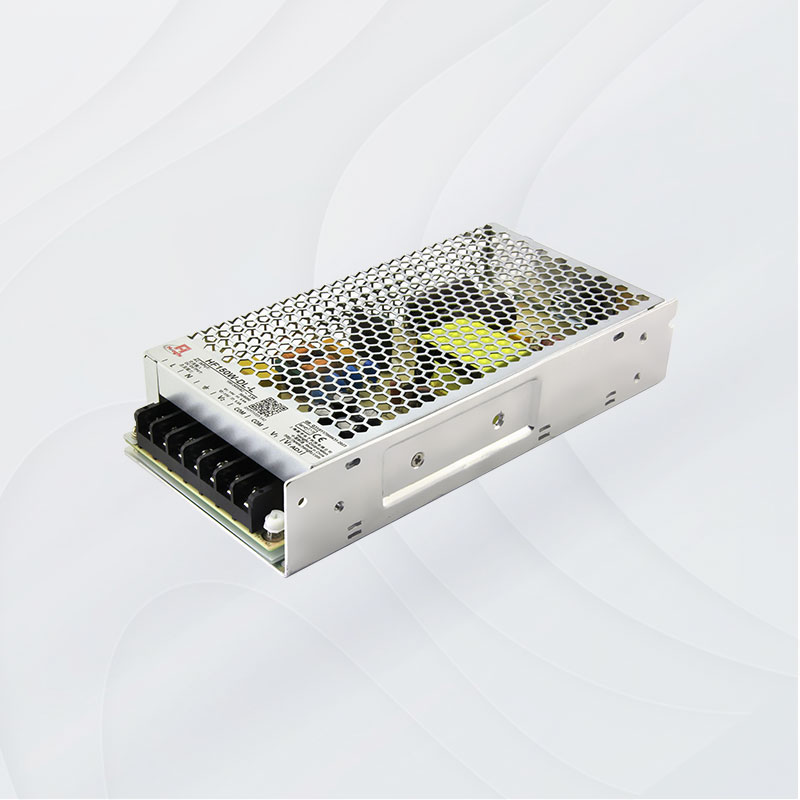

HF150W-DL-L
