Laser equipment power supply

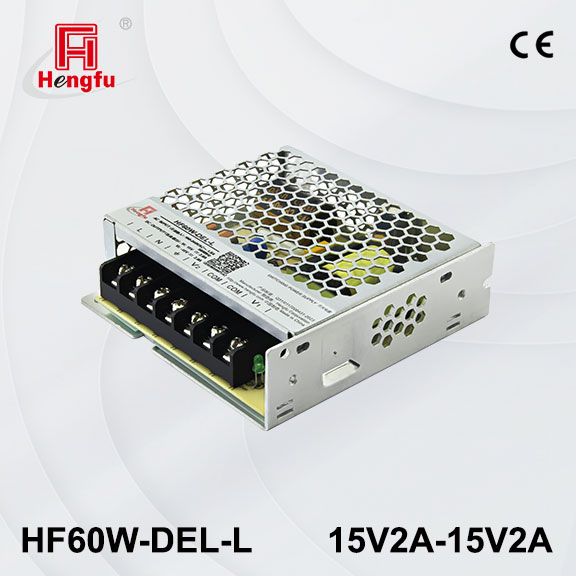

60W Dual Output DEL Series (HF60W-DEL-L)

Product Model：HF60W-DEL-L

Rated power
(W)：60

Channel (s)：Dual

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：--

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：5.0A,5.0A

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：99*97*30

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-LVD

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF60W-DEL-L
Product Specifications

5.0A,5.0A
Input voltage range

85~264VAC
Input frequency

47~63Hz
Inrush current

＜45A/230VAC, cold start
Input leakage current

＜0.75mA/240VAC
Line regulation (full load)

≤±0.5%
Voltage adjust range

V1:±5% of rated output voltage
Overload protection

130~160%, hiccup mode, auto recovery
Over voltage protection

built-in IC protection
Withstand voltage

I/P -O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Rise time

＜50ms/115VAC; 50ms/230VACG
Hold up time

≥10ms/115VAC;≥40ms/230VAC
Operating temperature

-30℃~+70℃ (refer to the derating curve)
Safety standards

meet UL62368-1, EN IEC62368-1, GB4943.1
Cooling method

convection
Ripple & Noise

120mV, 120mV
Efficiency (Typ.)

85%

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：
HF150W-D-L

Product Parameters

Rated power
(W)：150

Input Voltage
(VDC)：240~370

Op. Temp.
(℃)：-30°C~+70°C

Channel (s)：Dual

Output Voltage
(VDC)：15V, -15V

Dimension
(mm)：199*98*50

Input Voltage
(VAC)：170~264

Output Current
(A)：5.0A,5.0A

Rated power
(W)：150

Channel (s)：Dual

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：5.0A,5.0A

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：199*98*50
Product Model：

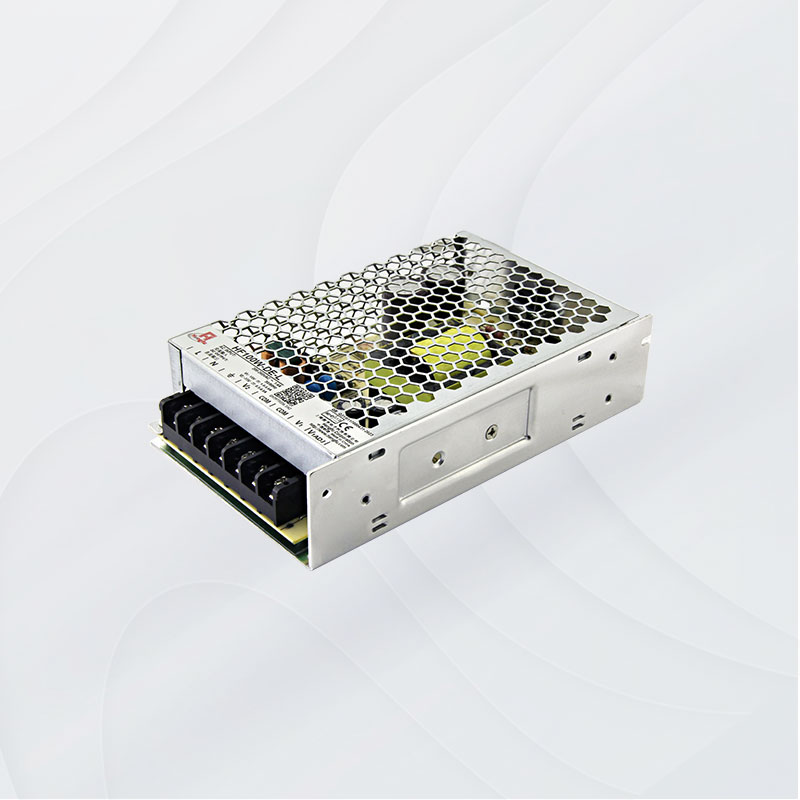

HF100W-DE-L
