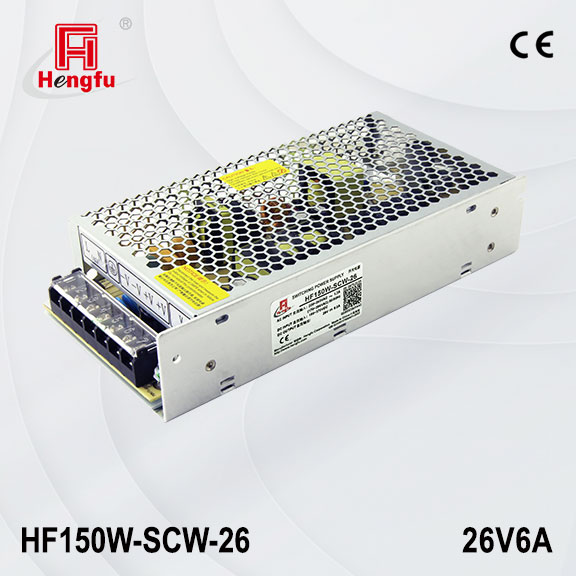

*Image for reference only. Subject to the physical product or technical specifications.
Special Application Power Supply
150W单路输出 (HF150W-SCW-26)
Product Model:HF150W-SCW-26
Rated power
(W):156
Input Voltage
(VAC):170~264
Input Voltage
(VDC):180~370
Output Voltage
(VDC):26
Output Current
(A):6A
Channel (s):单路
Op. Temp.
(℃):-20°C~+70°C
Dimension
(mm):199*98*41.5

Product Features

Special Application Series switching power supplies feature precise adaptation, reliable application, and technological innovation. We break through the limitations of traditional standard power supplies by providing deeply customized power solutions, committed to meeting the power supply needs of various industries in non-standard scenarios.
We possess professional custom development capabilities, enabling comprehensive matching from three key dimensions: electrical parameters, mechanical structure, and environmental adaptability, tailoring power products that truly meet your application requirements.

Technical Parameters

  • 产品型号
    HF150W-SCW-26
  • 产品规格
    26V6A
  • 重量 & 小包装量
    0.54kg/pcs, 24pcs
  • 输入电压范围
    170~264VAC (180~370VDC)
  • 输入频率范围
    47~63Hz
  • 输入电流
    1.3A/230VAC
  • 输入启动冲击电流
    冷启动, 45A/230VAC
  • 输入漏电流
    <0.75mA/230VAC
  • 电网调整率
    ≤±0.5%
  • 输出电压调节范围
    ±10%
  • 输出过载保护
    115~170%, 打嗝模式,延迟保护,自动恢复
  • 输出过压保护
    30~36VDC, 打嗝模式(异常条件移除后可自动恢复)
  • 绝缘强度
    I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • 上升时间
    50ms@满载时(典型值)
  • 保持时间
    20ms@满载时(典型值)
  • 工作温度
    -20℃~+70℃(参考减额曲线图)
  • 安全标准
    符合 UL62368-1, IEC/EN62368-1, GB4943.1
  • 电磁兼容标准
    符合 EN55032, EN55035, EN61000-3-2, 3, EN61000-4-2,3,4,5,6,8,11
  • 冷却方式
    自然冷却
