HF240W-S-15_Industrial Switching Power Supply Manufacturer

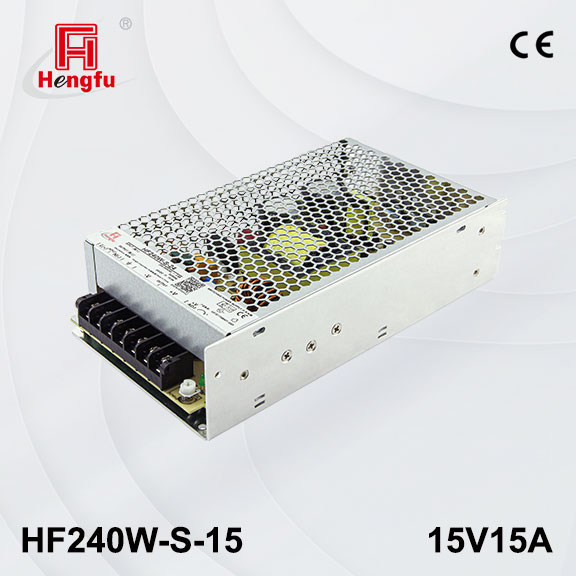

*Image for reference only. Subject to the physical product or technical specifications.

Special Application Power Supply

240W Single Output S Series (HF240W-S-15)

Product Model：HF240W-S-15

Rated power
(W)：240

Channel (s)：Single

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：15

Output Current
(A)：15.0A

Op. Temp.
(℃)：-20~+70

Dimension
(mm)：200*110*50

Product Features

Special Application Series switching power supplies feature precise adaptation, reliable application, and technological innovation. We break through the limitations of traditional standard power supplies by providing deeply customized power solutions, committed to meeting the power supply needs of various industries in non-standard scenarios.
We possess professional custom development capabilities, enabling comprehensive matching from three key dimensions: electrical parameters, mechanical structure, and environmental adaptability, tailoring power products that truly meet your application requirements.

Deep Custom Development Wide Operating Temperature Range Key Components from Renowned Domestic and International Brands
Precise Application Scenario Matching Full-Process Stringent Testing Suitable for Various Demanding Working Environments
Wide Input Voltage Range High Efficiency, High Reliability, Long Service Life
