Photovoltaic power supply

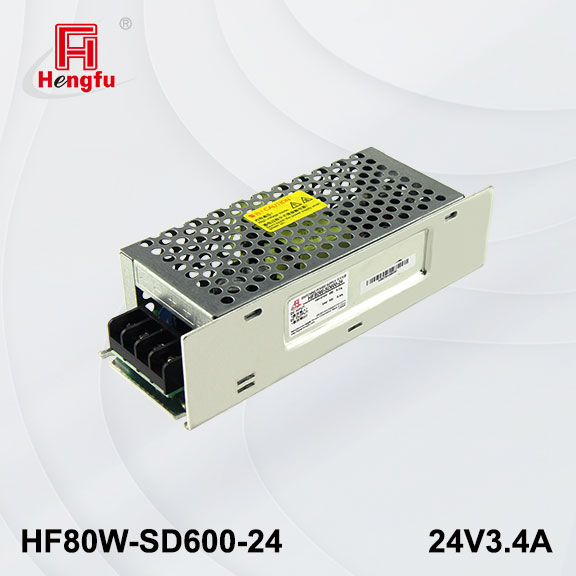

80W Single Output SD Series (HF80W-SD600-24)

Product Model：HF80W-SD600-24

Rated power
(W)：81.6

Channel (s)：Single

Input Voltage
(VAC)：--

Input Voltage
(VDC)：150~600

Output Voltage
(VDC)：24

Output Current
(A)：7.4A

Op. Temp.
(℃)：-40~+80

Dimension
(mm)：156*56.6*41.1

Product Features

Hengfu Photovoltaic-Dedicated Switching Power Supply is precisely designed for power conversion scenarios in photovoltaic systems, with deep adaptation to outdoor solar environment requirements.
Widely applied across multiple stages of photovoltaic power generation systems, compatible with various equipment including photovoltaic modules, inverters, energy storage batteries, and monitoring systems.

Suitable for photovoltaic systems Suitable for applications up to 5000m altitude High efficiency, high reliability, long service life 3-year limited warranty
Wide input voltage range Input overvoltage protection, undervoltage protection Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF80W-SD600-24
Product Specifications

7.4A
Input voltage range

150~600VDC
Input current

0.7A/150VDC
Inrush current

＜80A/400VDC, cold start
Line regulation

≤±0.5%
Load regulation

≤±1%
Voltage adjust range

±10%
Overload protection

110%~150%, shut off, re-power on to recover
Over voltage protection

115%~150%, shut off, re-power on to recover
Withstand voltage

I/P-O/P: 4.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 1.0KVAC/1min
Start time

≤2000ms/400VDC
Rise time

＜50ms/400VDC
Operating temperature

-40℃~+80℃ (refer to the derating curve)
Safety standards

design refer to UL1741, EN62109-1
Cooling method

convection
Ripple & Noise

150mV
Efficiency (Typ.)

86%

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：
HF300W-SDA1500-27

Product Parameters

Rated power
(W)：300

Input Voltage
(VDC)：400~1500

Op. Temp.
(℃)：-40~+70

Channel (s)：Single

Output Voltage
(VDC)：27

Dimension
(mm)：240*82*60

Input Voltage
(VAC)：--

Output Current
(A)：11.2A

Rated power
(W)：300

Channel (s)：Single

Input Voltage
(VAC)：--

Input Voltage
(VDC)：400~1500

Output Voltage
(VDC)：27

Output Current
(A)：11.2A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：240*82*60
Product Model：

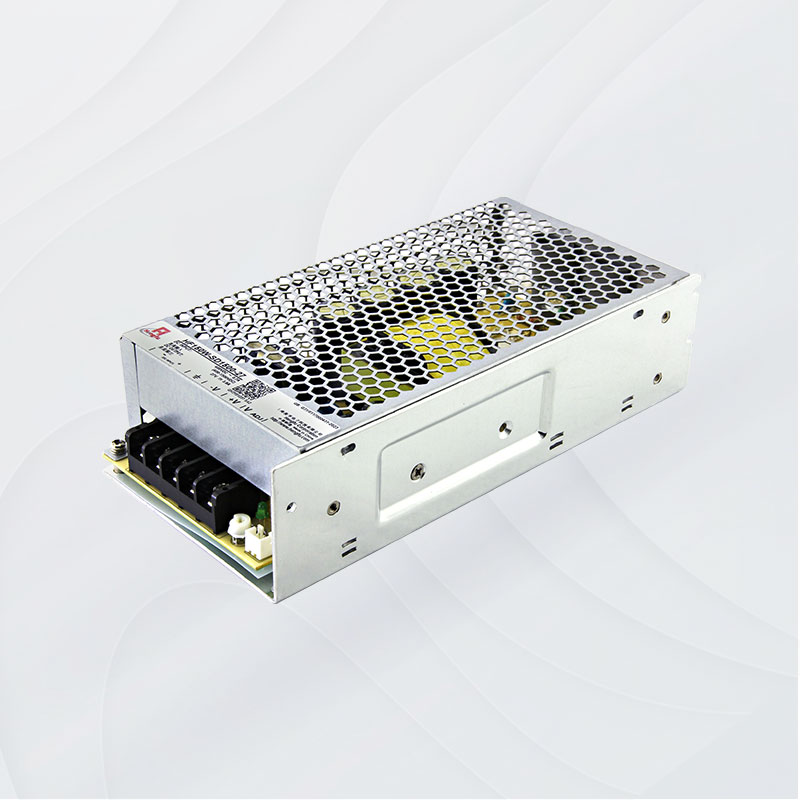

HF150W-SD1500-27
