HF35W-D-B_Industrial Switching Power Supply Manufacturer

*Image for reference only. Subject to the physical product or technical specifications.

Multiple Output Series

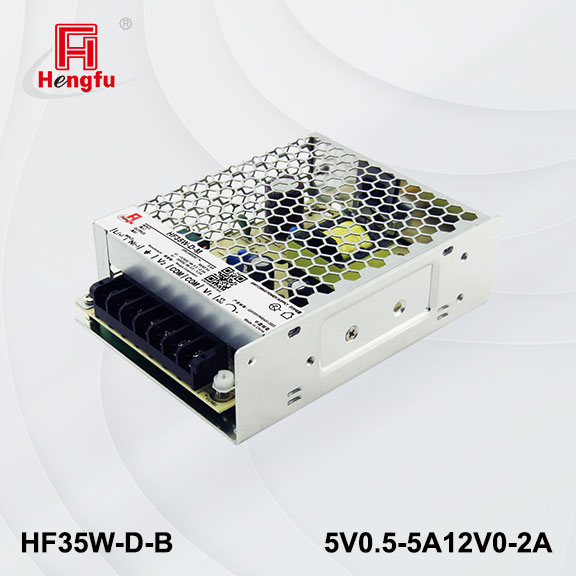

35W Dual Output D Series (HF35W-D-B)

Product Model：HF35W-D-B

Rated power
(W)：35

Channel (s)：Dual

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：5V, 12V

Output Current
(A)：5.0A,2.0A

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：129*98*39

Product Features

Standard multi-output switching power supply series with power coverage from 10W to 1000W. Offers various output configurations including dual isolated, dual non-isolated, triple non-isolated, and quadruple isolated outputs to flexibly adapt to different system power requirements.
Widely applicable across industrial control, automation equipment, security monitoring, new energy, and various other fields, precisely matching diverse application scenarios.

Input Voltage Range: 170~264VAC / 240~370VDC Built-in EMI Filter Output Overload, Overvoltage, and Short-circuit Protection 3-Year Limited Warranty
Operating Temperature: -30°C to +70°C Passed 5G Vibration and Shock Tests High Efficiency, High Reliability, Long Service Life
3000VAC High Isolation Voltage Key Components from Renowned Domestic and International Brands Suitable for Various Demanding Industrial Environments

Related Products

Product Picture

Product Model

Product Parameters

Data Sheet

Sample Request

Buy Now

Product Model：

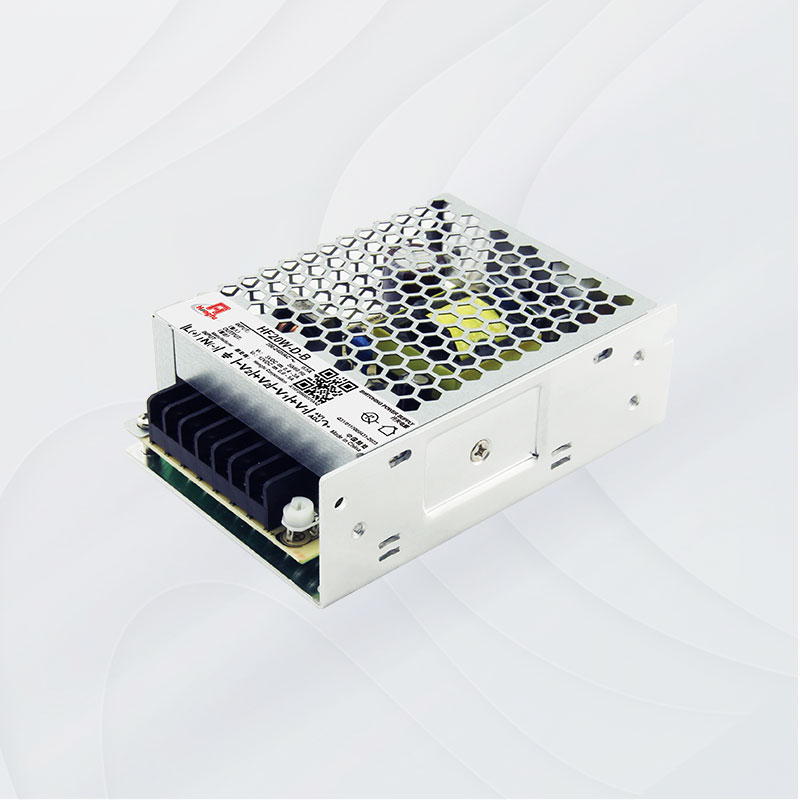

HF20W-D-F
