Multiple Output Series (Universal Input)

60W两路输出（HF60W-DK-L）

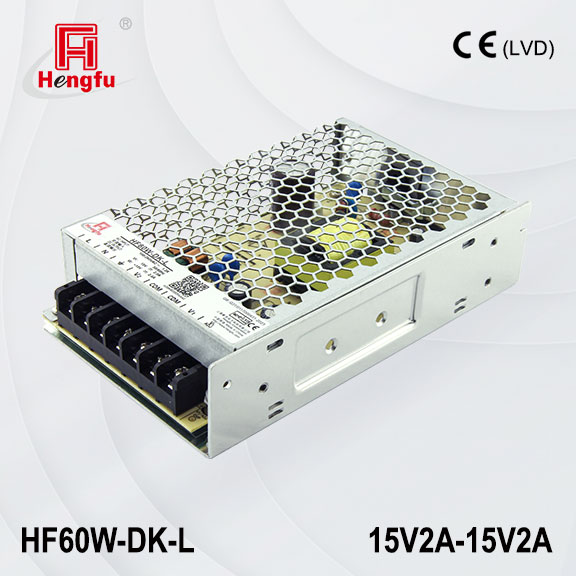

Product Model：HF60W-DK-L

Rated power
(W)：60

Channel (s)：两路

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：2A,2A

Op. Temp.
(℃)：-20°C~+70°C

Dimension
(mm)：159*98*39

Product Features

Standard multi-output switching power supply with power range from 10W to 1000W. Supports worldwide wide-range AC input and provides various output configurations including dual isolated, dual non-isolated, triple non-isolated, and quadruple isolated outputs to meet different system power requirements.
We offer various output voltage combinations including 5V/12V, 5V/24V, 12V/24V, and ±15V, with free sample testing available. Professional custom development services are also supported to meet diverse non-standard application requirements.

Wide Input Voltage Range: 85~264VAC / 120~370VDC Built-in EMI Filter Output Overload, Overvoltage, and Short-Circuit Protection 3-Year Limited Warranty
Operating Temperature: -30°C to +70°C Passed 5G Vibration and Shock Tests High Efficiency, High Reliability, Long Service Life
3000VAC High Isolation Voltage Key Components from Renowned Domestic and International Brands Suitable for Various Demanding Industrial Environments

Technical Parameters

HF60W-DK-L
15V2A-15V2A
85~264VAC (120~370VDC)
cold start, 40A/230VAC 冷启动, 40A/230VAC
<0.8mA/240VAC
V1:±0.5%
V1:±1%；V2:±10%（Nonregulator不稳压)
V1:5%
105~150%/100VAC hiccup mode,auto recovery打嗝模式，异常移除自动恢复
105~150% hiccup mode,auto recovery打嗝模式，异常移除自动恢复
I/P-O/P:3.0KVAC/1min I/P-F/G:1.5KVAC/1min O/P-F/G:0.5KVAC/1min
≤50mS ≥12mS@110VAC ≥20mS@220VAC
-20℃~+70℃
EN62368-1
EN55032 CLASSA EN61000-4-2,3,4,5,6,8,11 EN61000-3-2,3
自然冷却
