Location: Home >Products >AC/DC Multi. Output >Multiple Output Series (Universal Input) >HF40W-DL-B
*Image for reference only. Subject to the physical product or technical specifications.
Multiple Output Series (Universal Input)

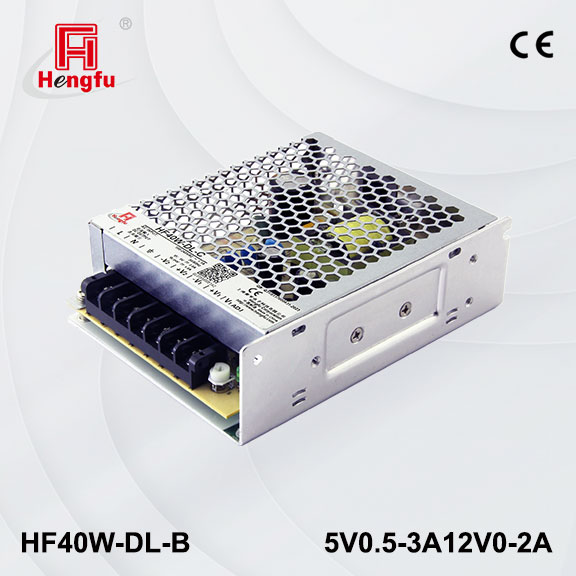

40W Dual Output DL Series (HF40W-DL-B)
Product Model：HF40W-DL-B
Rated power
(W)：40
Channel (s)：Dual
Input Voltage
(VAC)：85~264
Input Voltage
(VDC)：120~370
Output Voltage
(VDC)：5V, 12V
Output Current
(A)：3.0A,2.0A
Op. Temp.
(℃)：-30~+70
Dimension
(mm)：129*98*39
Data Sheet
Sample Request
Product Inquiry
Buy Now

Product Features

Standard multi-output switching power supply with power range from 10W to 1000W. Supports worldwide wide-range AC input and provides various output configurations including dual isolated, dual non-isolated, triple non-isolated, and quadruple isolated outputs to meet different system power requirements.
We offer various output voltage combinations including 5V/12V, 5V/24V, 12V/24V, and ±15V, with free sample testing available. Professional custom development services are also supported to meet diverse non-standard application requirements.

Technical Parameters

  • Product Model
    HF40W-DL-B
  • Product Specifications
    3.0A,2.0A
  • Input voltage range
    85~264VAC (120~370VDC)
  • Inrush current
    ＜30A/230VAC, cold start
  • Input leakage current
    ＜0.75mA/240VAC
  • Line regulation
    ≤±0.5%
  • Voltage tolerance
    V1:≤±1%, V2≤±3% (with regulator); ≤±10% (w/o)
  • Voltage adjust range
    V1:±5% of rated output voltage
  • Overload protection
    105~150%, hiccup mode, auto recovery
  • Over voltage protection
    115~150%, hiccup mode, auto recovery
  • Withstand voltage
    I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • Rise, hold up time
    50ms, 20ms@full load (typical)
  • Operating temperature
    -30℃~+70℃ (refer to the derating curve)
  • Safety standards
    meet UL62368-1, EN IEC62368-1, GB4943.1
  • EMC standards
    meet EN55032, EN55035, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
  • Cooling method
    convection
  • Ripple & Noise
    80mV, 120mV
  • Efficiency (Typ.)
    74%
