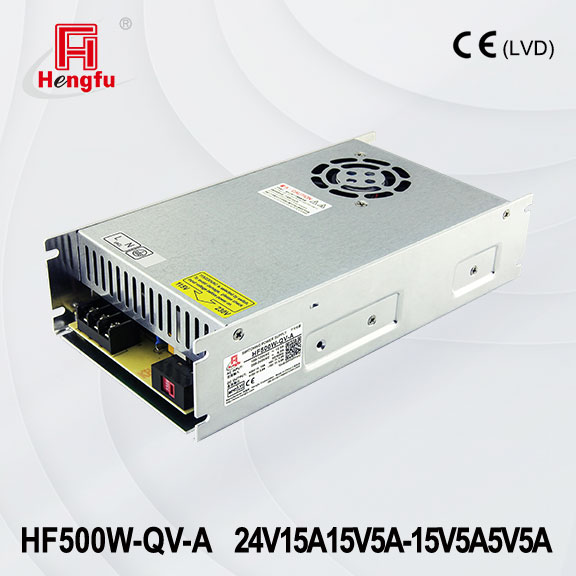

*Image for reference only. Subject to the physical product or technical specifications.

Laser equipment power supply

500W四路输出 (HF500W-QV-A)

Product Model：HF500W-QV-A

Rated power
(W)：500

Channel (s)：四路

Input Voltage
(VAC)：95~132/170~264

Input Voltage
(VDC)：--

Output Voltage
(VDC)：24V, 15V, -15V, 5V

Output Current
(A)：15A, 5A, 5A, 5A

Op. Temp.
(℃)：-20°C~+70°C

Dimension
(mm)：240*112*55

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

产品型号

HF500W-EQV-A
产品规格

V1:24V15A, V2:15V5A, V3:-15V5A, V4:5V5A
外形尺寸 (mm)

240×122×55
重量＆小包装量

1.1kg, 16pcs
输入电压范围

95~132/170~264VAC 通过开关选择
输入启动冲击电流

冷启动，65A/230VAC
输入频率范围

47~63Hz
输入漏电流

＜0.75mA/ 230VAC
电网调整率 (满载时)

≤±0.5%
输出电压调节范围

V1: 额定输出电压的±5%
输出过载保护

105%~150%, 打嗝模式（异常条件移除后可自动恢复）
输出过压保护

115~150%, 打嗝模式（异常条件移除后可自动恢复）
绝缘强度

I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
上升时间

50ms@满载时（典型值）
保持时间

20ms@满载时（典型值）
工作温度

-20℃~+70℃（参考减额曲线图）
安全标准

符合 UL62368-1, IEC/EN62368-1, GB4943.1
冷却方式

风冷
