HF200W-LDK-Q_Industrial Switching Power Supply Manufacturer

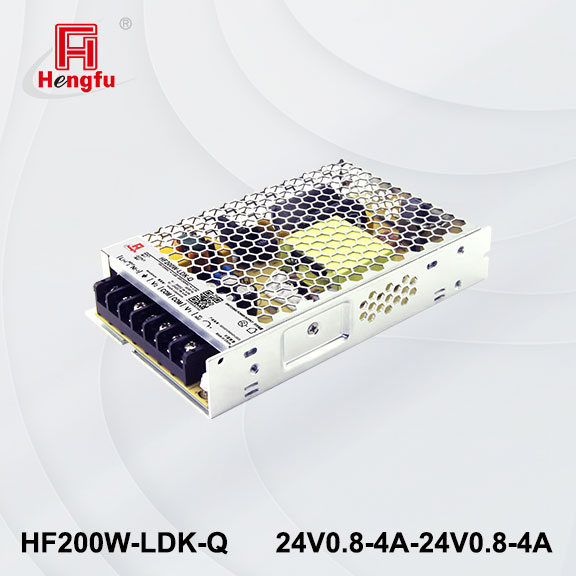

*Image for reference only. Subject to the physical product or technical specifications.

Laser equipment power supply

200W Dual Output LDK Series (HF200W-LDK-Q)

Product Model：HF200W-LDK-Q

Rated power
(W)：200

Channel (s)：Dual

Input Voltage
(VAC)：85~132/170~264

Input Voltage
(VDC)：--

Output Voltage
(VDC)：24V, -24V

Output Current
(A)：4.0A,4.0A

Op. Temp.
(℃)：-40°C~+70°C

Dimension
(mm)：159*97*30

Downloads： 3D drawing 丨 Drawing

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF200W-LDK-Q
Product Specifications

4.0A,4.0A
Rated Input Voltage

100-120Vac /200-240Vac 开关选择 by switch (240-340Vdc 开关拨在230V档位 switch on 230V)
Input Voltage Range

85~132Vac /170~264Vac (240-370Vdc)
Rated Input Frequency

50/60Hz
Input Frequency Range

47~63Hz
Input Current

4.0A/115Vac; 2.2A/230Vac;
Inrush Current

65A/230Vac，冷启动 cold start
Input Leakage Current

＜0.75mA/240Vac
Voltage Adjust Range

±5%
Line Regulation

±0.5%，±1.0%
Load Regulation

±0.5%，±3.0%
Output Voltage Accuracy

±1%，±3%
Ripple & Noise

≤150mVp-p，≤150mVp-p
Efficiency (Typ.)

91%
