HF150W-LDK-L_Industrial Switching Power Supply Manufacturer

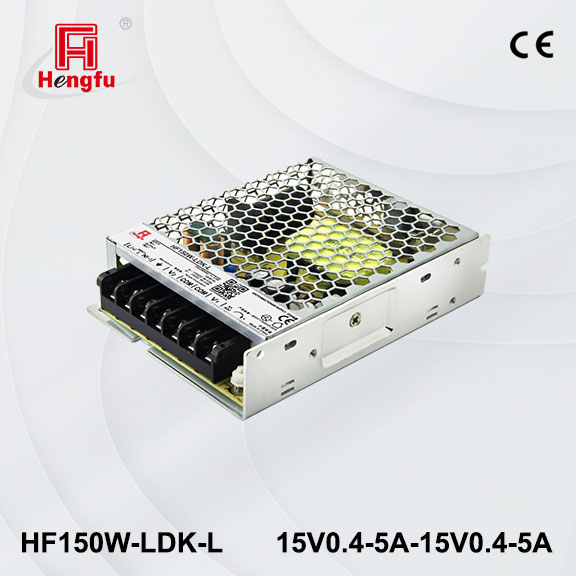

*Image for reference only. Subject to the physical product or technical specifications.

Laser equipment power supply

150W Dual Output LDK Series (HF150W-LDK-L)

Product Model：HF150W-LDK-L

Rated power
(W)：150

Channel (s)：Dual

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：15V, -15V

Output Current
(A)：5.0A,5.0A

Op. Temp.
(℃)：-40°C~+70°C

Dimension
(mm)：129*97*30

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-LVD

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

Product Model

HF150W-LDK-L
Product Specifications

5.0A,5.0A
Rated Input Voltage

100-240Vac (140-340Vdc)
Input Voltage Range

85~264Vac (120~370Vdc)
Rated Input Frequency

50/60Hz
Input Frequency Range

47~63Hz
Input Current

＜3.2A/115Vac; ＜1.6A/230Vac
Inrush Current

＜65A/230Vac，冷启动 cold start
Input Leakage Current

＜0.75mA/240Vac
Voltage Adjust Range

±5%
Line Regulation

±0.5%，±1.0%
Load Regulation

±0.5%，±5%
Output Voltage Accuracy

±1%，±8%
Ripple & Noise

≤150mVp-p，≤150mVp-p
Efficiency (Typ.)

90.5%
