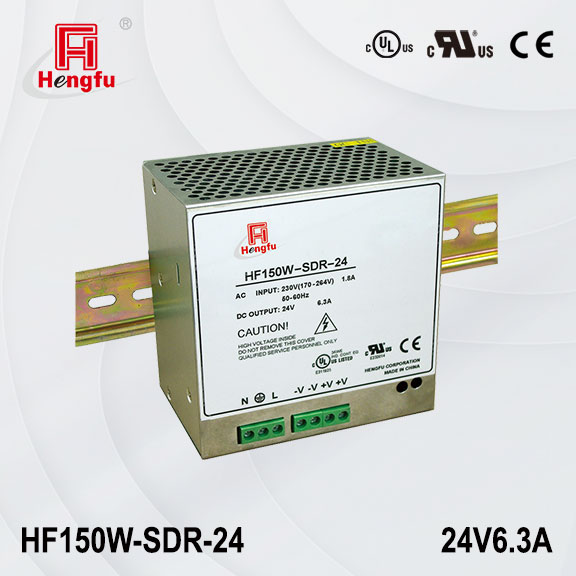

*Image for reference only. Subject to the physical product or technical specifications.

SDR DIN Rail Series

150W单路输出导轨电源系列 (HF150W-SDR-24)

Product Model：HF150W-SDR-24

Channel (s)：单路

Rated power
(W)：151.2

Input Voltage
(VAC)：85~32/170~264

Input Voltage
(VDC)：--

Output Voltage
(VDC)：24

Output Current
(A)：6.3

Op. Temp.
(℃)：-20°C~+70°C

Dimension
(mm)：108.4*109*74.2

Product Features

Standard Metal DIN Rail Power Supply Series, power range: 40W~480W. Features DIN rail mounting with compact structure and easy installation. Offers worldwide wide-range voltage input, multiple protection functions, excellent heat dissipation design, high stability, and strong noise immunity. Electromagnetic compatibility and safety performance comply with latest international and Chinese standards.
Widely used in industrial control, machinery equipment, rail transportation, building automation and other applications.

Compact size and space-saving design Key components from renowned domestic and international brands 3000VAC high isolation voltage 3-year limited warranty
TS-35/7.5/15 standard DIN rail mounting Operating temperature range: -30℃ to +70℃ Withstands 300VAC input surge voltage for 5 seconds
Wide input voltage range: 85~264VAC / 120~370VDC High efficiency, high reliability, long service life Output overload, overvoltage, and short-circuit protection

Technical Parameters

产品型号

HF150W-SDR-24
产品规格

24V6.3A
输入电压范围

85~32/ 170~264VAC 通过跳线选择
输入频率范围

47~63Hz
输入启动冲击电流

冷启动，65A/230VAC
输入电流

1.8A/230VAC
输入漏电流

<0.75mA/230VAC
电网调整率 (满载时)

≤±0.5%
输出电压调节范围

±10%
输出过载保护

115%~150%, 延迟关断，重启恢复
输出过压保护

115%~150%, 关断模式（电源重新上电后方可恢复）
绝缘强度

I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
上升时间

50ms@满载时（典型值）
保持时间

20ms@满载时（典型值）
工作温度

-20℃~+70℃ （参考减额曲线图）
安全标准

符合 UL508, IEC/EN62368-1, GB4943.1
电磁兼容标准

符合 EN55032, EN55035, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
冷却方式

自然冷却
接线端子

3P/6.35mm, 4P/6.35mm pitch, 螺丝接线端
重量

0.67kg
