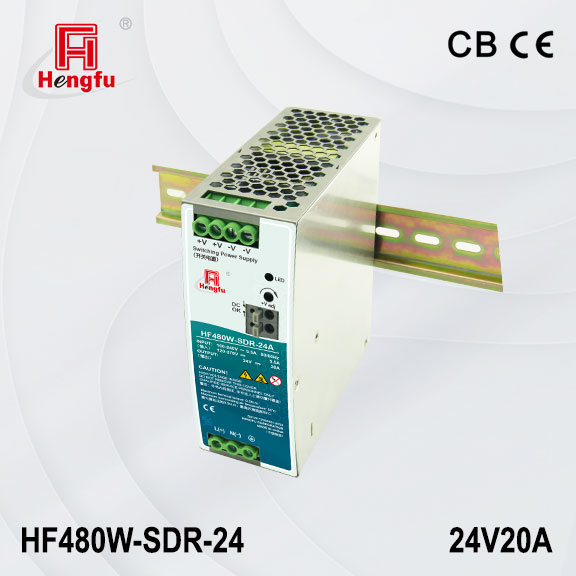

*Image for reference only. Subject to the physical product or technical specifications.

SDR DIN Rail Series

480W单路输出导轨电源系列 (HF480W-SDR-24)

Product Model：HF480W-SDR-24

Channel (s)：单路

Rated power
(W)：480

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：24

Output Current
(A)：20

Op. Temp.
(℃)：-40°C~+70°C

Dimension
(mm)：48*125.2*127.5

Product Features

Standard Metal DIN Rail Power Supply Series, power range: 40W~480W. Features DIN rail mounting with compact structure and easy installation. Offers worldwide wide-range voltage input, multiple protection functions, excellent heat dissipation design, high stability, and strong noise immunity. Electromagnetic compatibility and safety performance comply with latest international and Chinese standards.
Widely used in industrial control, machinery equipment, rail transportation, building automation and other applications.

Compact size and space-saving design Key components from renowned domestic and international brands 3000VAC high isolation voltage 3-year limited warranty
TS-35/7.5/15 standard DIN rail mounting Operating temperature range: -30℃ to +70℃ Withstands 300VAC input surge voltage for 5 seconds
Wide input voltage range: 85~264VAC / 120~370VDC High efficiency, high reliability, long service life Output overload, overvoltage, and short-circuit protection

Technical Parameters

产品型号

HF480W-SDR-24
产品规格

24V20A
额定输入电压

100-240Vac (140-340Vdc)
输入电压范围

85~264Vac (120-370Vdc)
额定输入频率

50/60Hz
输入频率范围

47~63Hz
输入电流

＜6A/115Vac; ＜3A/230Vac
输入启动冲击电流

＜40A/230Vac，冷启动 cold start
输入漏电流

<0.8mA/240VAC
输出电压调节范围

24-28V@24V; 48-55V@48V
电网调整率

±0.5%
负载调整率

±1%
输出电压精度

±1%
待机功耗

＜6W/230Vac
纹波与噪声

≤120mVp-p
效率 (Typ.)

95%
