HF500W-LSC-12_Industrial Switching Power Supply Manufacturer

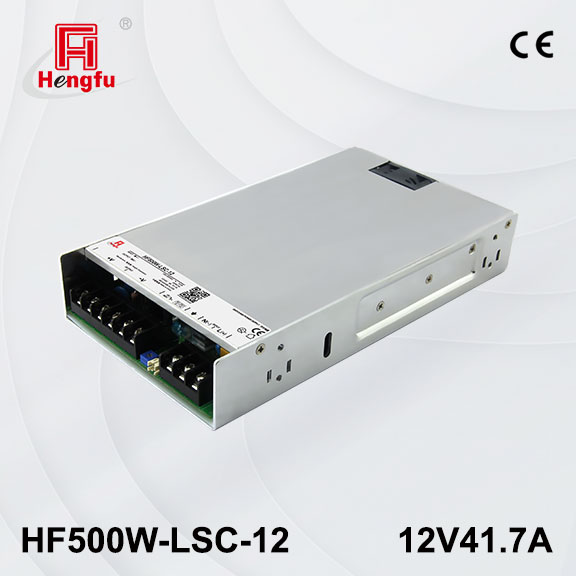

*Image for reference only. Subject to the physical product or technical specifications.

PFC Series

500W Single Output LSC Series (HF500W-LSC-12)

Product Model：HF500W-LSC-12

Rated power
(W)：500.4

Channel (s)：Single

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：12

Output Current
(A)：41.7A

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：230*127*40.5

Downloads： Drawing

Certificate report： CE-LVD

Product Features

This series of switching power supplies adopts a metal housing and active PFC design, with a power range from 100W to 3000W. It features worldwide wide-range voltage input, high power factor (PF), broad operating temperature range, and high-altitude applicability. Additionally, it offers low power consumption, high efficiency, high reliability, and safety isolation, making it well-suited for both inductive and capacitive loads.
Widely used in industrial equipment, consumer electronics, infrastructure, and various other fields.

Ultra-slim design, cost-effective Operating temperature: -30°C to +70°C Low ripple noise, low standby power consumption, high efficiency 3-year limited warranty
Worldwide wide-range voltage input 3000VAC high isolation voltage Output overload, overvoltage, short-circuit protection
Built-in active PFC function, PF value up to 98% Withstands 300VAC input surge voltage for 5 seconds Suitable for 5000m altitude applications
