LSM Series (Universal Input)

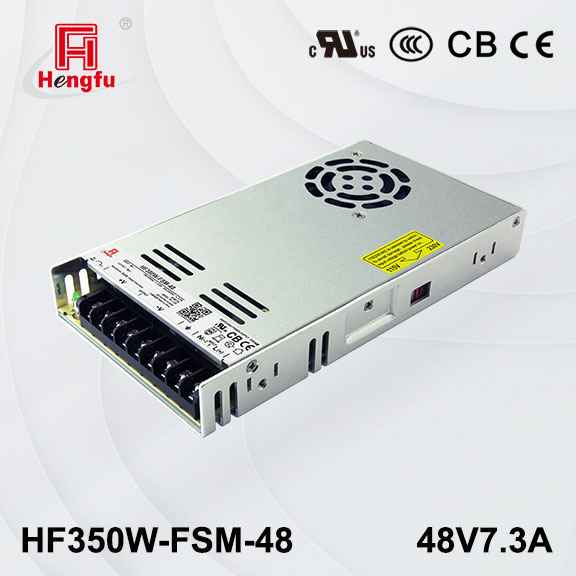

350W Single Output FSM Series (HF350W-FSM-48)
Product Model：HF350W-FSM-48
Rated power
(W)：350.4
Channel (s)：Single
Input Voltage
(VAC)：85~132/170~264
Input Voltage
(VDC)：120~187/240~370
Output Voltage
(VDC)：48
Output Current
(A)：7.3A
Op. Temp.
(℃)：-30~+70°C
Dimension
(mm)：215*115*30
Product Features
LSM Series standard metal casing switching power supplies cover a power range of 35W to 350W, adopting an ultra-slim design and certified with UL, CE, CB, CCC, and other international standards, meeting comprehensive safety requirements.
Standard output voltages include 5V, 12V, 15V, 24V, 28V, 36V, and 48V, meeting the needs of different scenarios. For personalized services, please contact our sales team.
Related Products
Product Picture
Product Model
Product Parameters
Data Sheet
Sample Request
Buy Now
-
Product Parameters
Rated power
(W)：349.2
Input Voltage
(VDC)：120~187/240~370
Op. Temp.
(℃)：-30~+70°C
Channel (s)：Single
Output Voltage
(VDC)：36
Dimension
(mm)：215*115*30
Input Voltage
(VAC)：85~132/170~264
Output Current
(A)：9.7A
Rated power
(W)：349.2
Channel (s)：Single
Input Voltage
(VAC)：85~132/170~264
Input Voltage
(VDC)：120~187/240~370
Output Voltage
(VDC)：36
Output Current
(A)：9.7A
Op. Temp.
(℃)：-30~+70°C
Dimension
(mm)：215*115*30
For more products, please contact customer service or request customization.
