HF35W-LSM-48_Industrial Switching Power Supply Manufacturer

*Image for reference only. Subject to the physical product or technical specifications.

LSM Series (Universal Input)

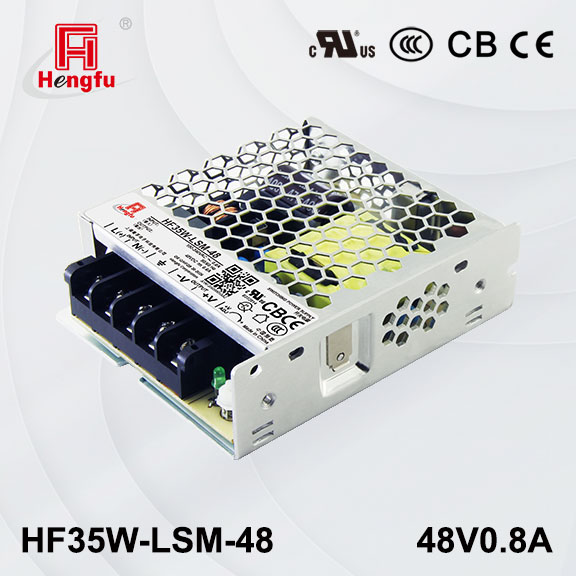

35W Single Output LSM Series (HF35W-LSM-48)

Product Model：HF35W-LSM-48

Rated power
(W)：38.4

Channel (s)：Single

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：48

Output Current
(A)：0.8A

Op. Temp.
(℃)：-30~+70°C

Dimension
(mm)：99*82*30

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-LVD 丨 CB-IEC60950 丨 CB-IEC62368 丨 CCC

HF35W-LSM-36 丨 HF50W-LSM-3.3

Product Features

LSM Series standard metal casing switching power supplies cover a power range of 35W to 350W, adopting an ultra-slim design and certified with UL, CE, CB, CCC, and other international standards, meeting comprehensive safety requirements.
Standard output voltages include 5V, 12V, 15V, 24V, 28V, 36V, and 48V, meeting the needs of different scenarios. For personalized services, please contact our sales team.

Ultra-slim design, thickness only 30mm Key components from renowned domestic and international brands Withstands 300Vac input surge voltage for 5 seconds 3-year limited warranty
Worldwide wide-range AC input Low ripple noise, low standby power consumption, high efficiency Suitable for 5000m altitude applications
Wide operating temperature: -30°C to +70°C Isolation voltage up to 3000Vac between input and output Output overload, overvoltage, short-circuit protection

Technical Parameters

Model No.
DC Output
Dimension (mm)
Weight ＆ MPQ
Input voltage range
Input frequency
Inrush current
Input leakage current
Line regulation (full load)
Voltage adjust range
Overload protection
Over voltage protection
Withstand voltage
Rise time
Hold up time
Operating temperature
Safety standards
EMC standards
Cooling method
