HF240W-EDR-48_Industrial Switching Power Supply Manufacturer

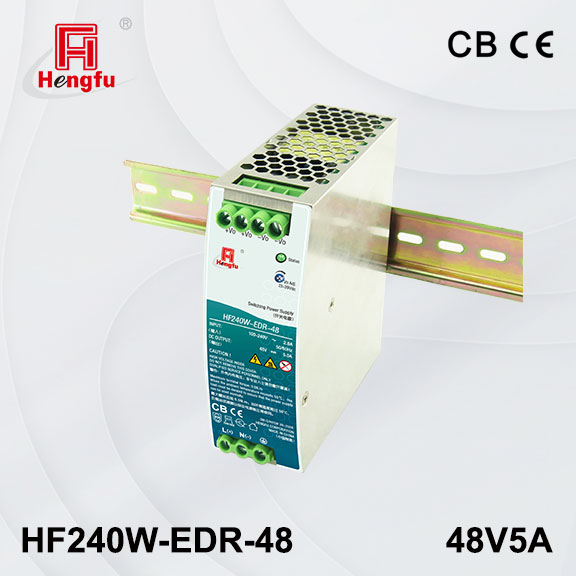

*Image for reference only. Subject to the physical product or technical specifications.

EDR DIN Rail Series

240W Single Output EDR Series (HF240W-EDR-48)

Product Model：HF240W-EDR-48

Rated power
(W)：240

Channel (s)：Single

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：48V

Output Current
(A)：5.0A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：41*124*110.5

Downloads： 3D drawing 丨 Drawing

Product Features

Ultra-Slim Metal DIN Rail Power Supply Series, power range: 30W-240W. Featuring DIN rail mounting with compact structure and easy installation. It offers significant advantages including worldwide wide-range voltage input, broad operating temperature range, high-altitude compatibility, high reliability, and safety isolation, delivering high stability and strong noise immunity. Electromagnetic compatibility and safety performance comply with the latest international and domestic standards.
Widely used in industrial control, machinery equipment, rail transportation, building automation, and other applications.

Ultra-slim design, suitable for confined spaces Key components from renowned domestic and international brands 3000VAC high isolation voltage 3-year limited warranty
TS-35/7.5/15 standard DIN rail mounting Operating temperature range: -40°C to +70°C Withstands 300VAC input surge voltage for 5 seconds
Wide input voltage range: 85~264VAC / 120~370VDC Suitable for applications up to 5000m altitude Output overload, overvoltage, and short-circuit protection

Technical Parameters
